Description
Key Features:
- Single channel with dual programmable relay outputs — 5A, 250VAC relay rating for reliable interface with gates, barriers, and access control panels

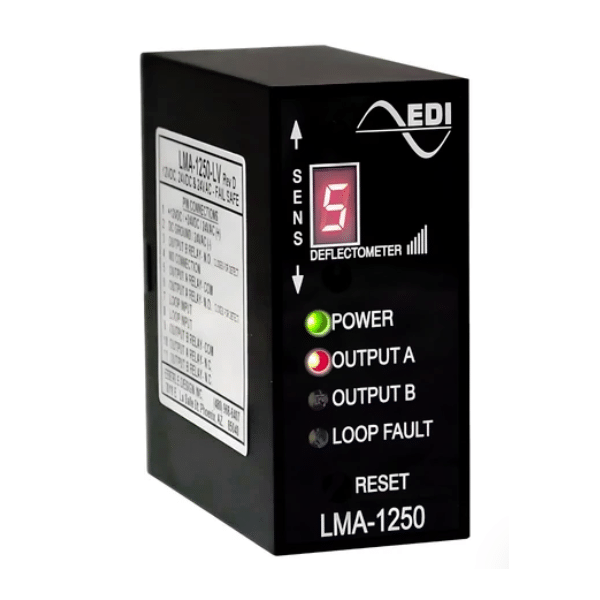

- Patented 7-Segment DEFLECTOMETER display — provides real-time visual feedback for sensitivity setting, loop frequency reading, loop fault reporting, and delay/extension timing indication; the industry’s best built-in diagnostic tool
- Automatic self-tuning — automatically tunes to any loop and lead-in combination within the inductance range upon power application; no manual frequency setting required
- Advanced Loop Fault Monitor — continuously checks loop integrity and reports and stores three types of faults: Open Loops, Shorted Loops, and 25% sudden inductance changes
- Loop Fault Memory — retains fault history even through power cycles for reliable troubleshooting after the fact
- Ten adjustable sensitivity levels (0–9) via front panel push buttons — accommodates vehicles from motorcycles to high-bed trucks
- Four selectable frequency levels — reduces crosstalk and interference when multiple loop detectors are installed near each other
- Sensitivity Boost feature — automatically increases sensitivity when needed for difficult detection situations
- Configurable 2-second call delay time and 2, 5, or 10-second call extension time — adjustable via front panel for precise access control timing
- Fail Safe and Fail Secure configurations — user-selectable operation mode in case of power interruption or loop fault
- Automatic environmental tracking — continuously compensates for temperature drift and weather-related inductance changes across the entire operating range
- Built-in lightning and surge protection — protects both the detector and connected equipment from voltage transients
- Wide loop inductance range: 20 to 2500 microhenries — works with virtually any properly installed inductive loop
- Rear-mounted 11-pin Molex Amphenol male connector — industry-standard connector compatible with virtually all access control panels and gate operators

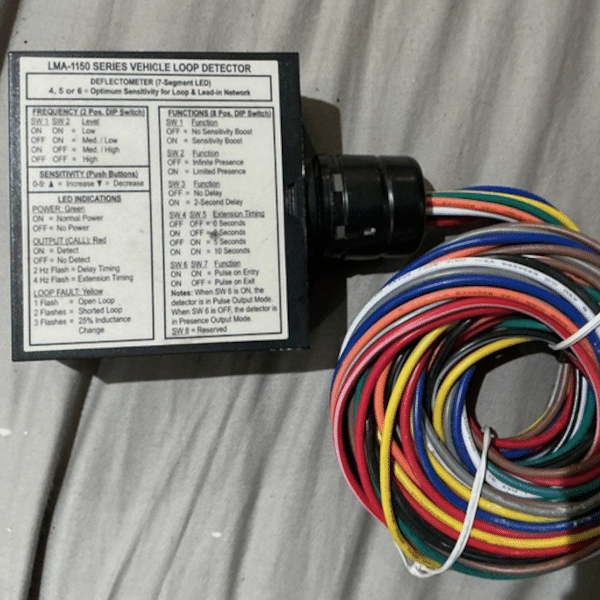

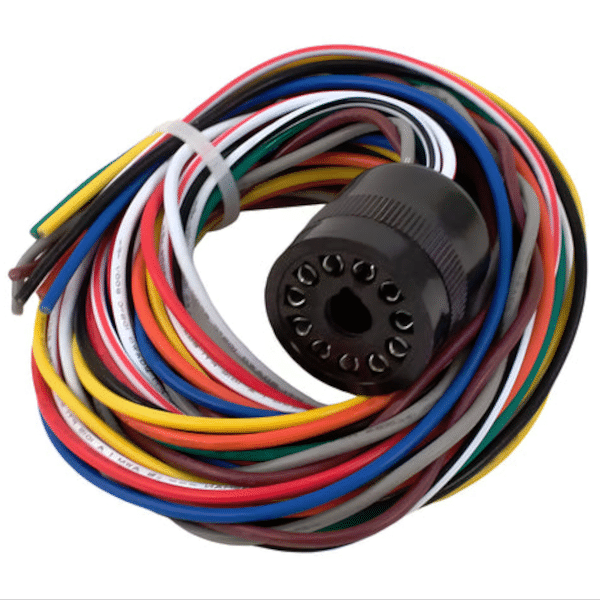

- 4 foot long harness
