Name: HME Saw-Cut Loop Kit
Availability: InStock

HME Saw-Cut Loop Kit

$44.88

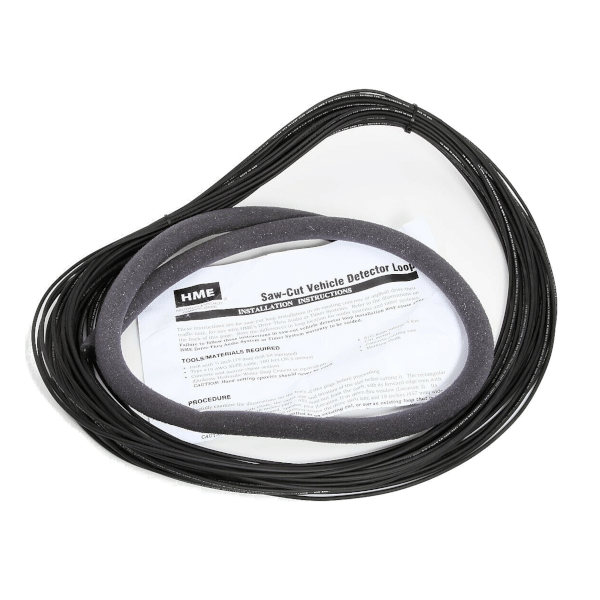

The HME 333G012R is the OEM Saw-Cut retro-fit loop wire kit used when a drive-thru lane has already been poured and a new inductive loop must be installed or an existing failed loop must be replaced. It is also known as HME part number 400G766A (Retro-Fit Loop Saw-Cut Kit). A saw is used to cut a narrow slot in the existing concrete or asphalt pavement, the loop wire is laid into the slot in a rectangular pattern, and the slot is sealed with loop sealant to protect the wire from traffic and moisture — creating a reliable underground inductive loop for vehicle detection. This wire is the essential starting point for any saw-cut loop installation or repair at the menu board, cashier window, or present window detection points.

In stock

Description

Key Features:

100 feet of OEM HME 18 AWG dual-conductor loop wire — sufficient for a standard single-lane saw-cut loop installation with lead-in cable
Dual-conductor design with black and blue color-coded wires for easy identification and correct polarity connection to the vehicle detector board
18 AWG gauge — the correct specification for use with HME inductive loop vehicle detector boards (VDB102, VDB103, and compatible)
Designed for saw-cut retro-fit installation into existing concrete or asphalt drive-thru lanes — used when a new loop must be installed in an already-poured lane or an existing failed loop requires replacement
OEM HME product — manufactured to HME’s specifications for use with HME drive-thru headset and timer systems
HME installation guidelines specify the loop slot should be cut 1/4 inch (6.25mm) wide and 1.5 to 2.25 inches (38–52mm) deep; the loop should be a rectangle 5 feet (1.52m) across the drive-thru lane and 18 inches (457mm) wide
OEM HME Part Numbers: 333G012R / 333G012R Rev A / 400G766A

Compatible Systems:

Works with all HME drive-thru systems using inductive loop vehicle detection, including:
