Name: HME VDB102 Internal Vehicle Detector Loop Board
Availability: InStock

HME VDB102 Internal Vehicle Detector Loop Board

$156.42

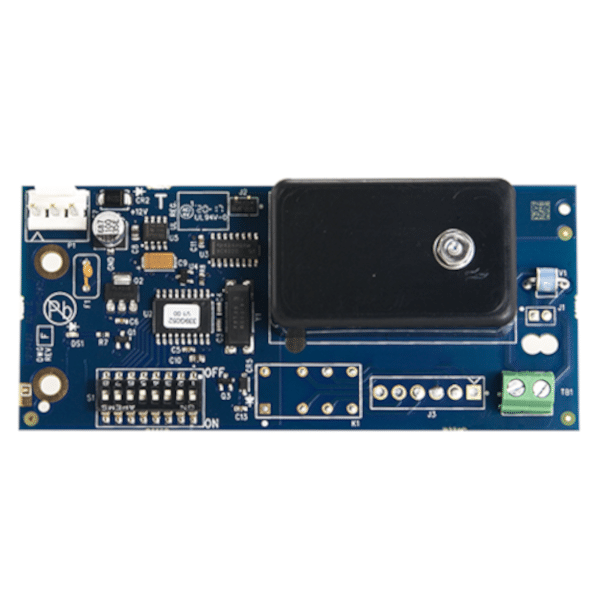

The HME VDB102 Internal Vehicle Detector Board is a critical drive-thru component from HM Electronics (HME), an industry leader in quick-service restaurant drive-thru communication systems worldwide. It connects directly inside a compatible HME base station or timer system. It interfaces with an underground inductive loop wire installed in the drive-thru lane to detect vehicle presence producing a tone in crew member headsets and activating drive-thru timers at designated detection points such as the menu board, cashier window, and present window.

The VDB102 is a direct upgrade replacement for the earlier VDB101 board and installs easily onto three plastic standoffs inside the base station with no soldering or special tools required. A built-in LED indicator lights when a vehicle is detected over the loop, making confirmation of proper operation quick and straightforward. The HME VDB102 Internal Vehicle Detector Board G27470 Drive-Thru Loop Sensor is compatible with the HME Ion IQ 6000, 6100, 6200 and 6700 systems as well as the HME EOS model base station. This product ships with a WIR-00004 Interconnect cable.

In stock

Description

Key Features:

Internal plug-in vehicle detection board — mounts directly inside compatible HME base stations and timer/control units via three plastic standoff connectors
Inductive loop detection — interfaces with an underground inductive loop (VDL100 or compatible) installed in the drive-thru lane pavement to detect vehicle presence
Built-in LED indicator — illuminates when a vehicle is detected over the loop for instant visual confirmation of proper operation during installation and troubleshooting
3-pin plug-in connector (P1): Pin 3 (black) — Output/Signal; Pin 2 (red) — +12VDC; Pin 1 (shield) — GND
DIP switch configurable — six selectable functions accessible on the back of the board for customizing detection behavior; standard factory settings work for most applications without changes
Direct drop-in replacement for the earlier HME VDB101 board — upgrades existing installations without additional hardware

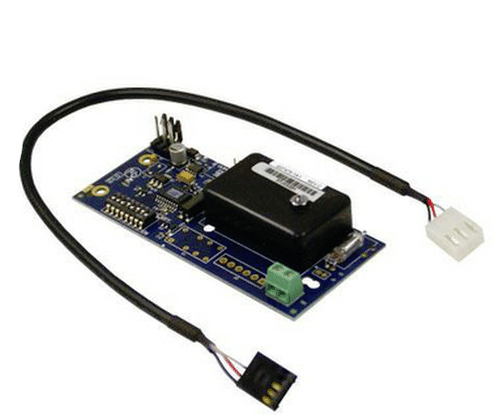

This product ships with a WIR-00004 Interconnect Cable
Part number: G27470-1A1

Compatible HME Systems:
