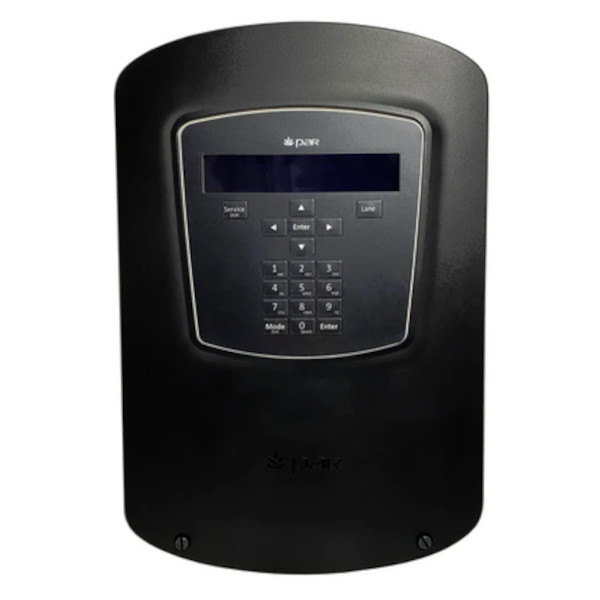

PAR G5 Drive-Thru Headset Base Station Single Lane

$1,585.07

The PAR G5 Single Lane Drive-Thru Headset Base Station is the fifth-generation wireless drive-thru communication system from PAR (formerly marketed under the 3M brand), the gold standard in quick-service restaurant drive-thru communication systems trusted by major national chains worldwide.

About this Base Station:

The PAR G5 Base Station is the heart of the G5 drive-thru headset system, delivering crystal-clear, reliable wireless communication between the menu post and restaurant staff. Designed with a compact, wall-mountable footprint, the G5 Base Station is packed with advanced features that reduce order errors, improve throughput speed, and enhance the overall customer experience. The single lane base station can also be upgraded to dual lane operation via a simple software update — no major hardware changes required — making it a smart, future-proof investment for growing operations.

In stock

Will you require a Power Supply?

Will you require help with installation?



Category: SKU: 78811746839 Tags: Brand: ,

Description

Ideal For: Quick-service restaurants, fast food chains, coffee shops, pharmacies, banks, and any business operating a single-lane drive-thru requiring reliable, professional-grade wireless headset communication. Newly purchased units include a 24 month manufacturer warranty.

Key Features:

  • 2.4 GHz ISM Band Digital Spread Spectrum wireless communication — reliable, interference-resistant signal throughout the restaurant
  • Advanced Noise Reduction technology delivers superior sound quality at the menu post — cuts through the hum of noisy engines for crisp, clear communication
  • Acoustic Echo Cancellation reduces echoes for clear comprehension of customer orders and fewer mistakes
  • Built-in Message Greeter — record up to 16 customizable greeter or promotional messages, each up to 10 seconds long; use to upsell key menu items or keep customers engaged while waiting
  • Color-coded drive-thru communications — indicator lights built into the microphone alert order takers to vehicles in different lanes and allow managers to monitor when customers are being served
  • Single lane operation standard — easily upgradeable to dual lane on-site via software update without hardware replacement
  • Compatible with both PAR G5 headsets and legacy XT-1 headsets — works with your existing headset inventory
  • Wall-mount design with a smaller footprint compared to previous generation base stations — frees up counter space
  • Input/output relay connections allow the G5 system to activate other restaurant devices such as timers, security cameras, doors, and cooler/refrigerator alerts
  • LCD display (4 x 40 characters) for easy setup and monitoring
  • Operating frequency: 2.4 GHz, data rate 576 Kbits/s
  • Audio output: 5 watts to outside speaker; 3 watts to monitor speaker (both into 8 ohms, under 2% THD)
  • Power consumption: 8W nominal, 84W maximum fully loaded
  • Requires 12VDC / 7A power supply (PS)
Advanced Technology Features
The G5 system utilizes several modern features to improve the user experience for restaurant staff:
  • Haptics “Feel” Technology: Provides a small vibration to confirm when a button is pressed or when a vehicle arrives at the order point.
  • Motion-Activated Accelerometer: NO on/off switch; the headset automatically wakes upon movement and enters “sleep mode” after 5 minutes of inactivity to save battery life.
  • Capacitive Touch Buttons: Uses “feather-touch” sensors instead of mechanical buttons, reducing wear and tear.
  • Smarter Sound: Features advanced noise reduction and acoustic echo cancellation to provide clear audio even with loud vehicle engines near the microphone.

Dimensions:

  • Base Station dimensions: 16-3/4″ L x 11-1/2″ W x 2-1/4″ D

Additional information

Weight 8 lbs
Dimensions 17 × 12 × 3 in
TARIFF FEE

$54.25

Included with your purchase

Included with your purchase:

(1) PAR G5 Base Station ONLY

This Base Station alone would be suitable for a 1 to 1 swap with an existing PAR G5 Base Station

NOT INCLUDED

Several other recommended components listed below are required if you wish to have a fully functioning drive-thru headset system with loop detection.
(1) PAR G5 Base Station Power Supply
(2) PAR G5 Headsets complete with Pod, Carrier and Battery – We recommend at least two headsets
(1) PAR G5 Duplex Speaker 4"
(1) PAR Foam Block Microphone
(1) 180ft Roll PAR White Jacketed cabling (Tx/Rx/Loop+Ground)
(1) PAR Acoustic Kit
(1) PAR Internal Loop Board
(1) PAR Five Slot + Five Headset Charging Station and Power Supply

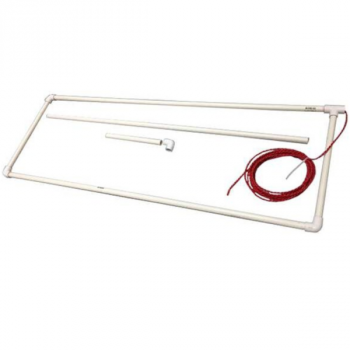

(1) Pre-fab or Saw Cut Loop with wires terminating inside your edifice or structure.
And also, a sufficient, cleared conduit running from a menu post or menu board to the inside of your edifice or structure. Your menu post or menu board will also require areas to mount a speaker and a separate microphone.
